Armored Anti Bite Fiber Optical Pigtail With ROHS Certificate
2.0mm 3.0mm Fiber Optic Pigtail Simplex , Duplex with ROHS Certificate
1. Description:
A Fiber optic patch cord is a fiber optic cable used to attach one device to another for signal routing.
Two ends with connectors be named patchcord or jumpter , only one end with the connector be named pigtail.
After the optical cable is laid, it must be connected by optical fiber to form a complete optical fiber transmission path. The connection point at the connection of an optical fiber interface includes connection points such as fiber connection point, splicer termination and connector interface, so the fiber connection also has two forms of connection and termination accordingly.
Optical fiber termination is the process of connecting the optical fiber connector and the optical fiber to the optical fiber connector. When the optical fiber is terminated, it is required to connect the connector and polish the end of the optical fiber connector to connect the interface with the entrance. Fiber optic termination is mainly used to make fiber optic jumpers and fiber pigtails. The fiber optic pigtail refers to a jumper-like connector used to connect an optical fiber and an optical fiber connector, including a jumper connector and a section of optical fiber.
The fiber tail is relatively thin, and the tail fiber is a fiber surface with an 8° angle. If it is not high temperature, it will fall off at 100°C.
It should be noted that the fiber pigtail patch cord is not a concept. One end of the fiber pigtail is a flexible connector, and the two ends of the patch cord are flexible connectors. There are many kinds of interfaces, and different connectors are required. The patch cord can be divided into two and can also be used as a pigtail. use.
2. Features:
♦ 3D fiber interferometer is available
♦ Pluggable structure, easy to intensive-installation
♦ Meets RoHS and Bell core GR 326-core standards
♦ Custom Configurations Available at No Extra Charge
♦ Low insertion loss and high return loss
3. Applications:
♦ Telecommunication networks
♦ Computer networks
♦ CATV networks
♦ Offshore, Power Generation, Oil & Gas
♦ Railways
♦ Active device termination
♦ Instrumentation
4. Specification:
| Fiber optic pigtail Technical Standard: |
| Insertion Loss: PC≤ 0.2dB, UPC≤ 0.2dB, APC≤ 0.3dB; Typical0.1dB; |
Return Loss: SM PC≥ 50dB, UPC≥ 55dB, APC≥ 65dB;
MM PC≥ 35dB, UPC≥35dB |
| Interchangeability: ≤ 0.2dB |
| Salt Spray: ≤ 0.2dB |
| Repeatability: (1000 times) ≤ 0.1dB |
| Vibration: (550Hz 1.5mm) ≤ 0.1dB |
| High Temperature: ( +85 sustain 100 hours) ≤ 0.2dB |
| Low Temperature: (-40 sustain 100 hours) ≤ 0.2dB |
| Temperature Circularly: (-40+85 sustain 100 hours) ≤ 0.2dB |
| Humidity: (+25+65 93 R. H. 100 hours) ≤ 0.2db |
| Apex Offset: 0μ m≤ ≤ 50μ m |
| Radius of Curvature: 7mm≤ ≤ 25mm |
| Cable Type: Simplex, Duplex, Fan-Out; |
| Connector Type: LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc. |
Fiber Mode: SM (single mode) G652D, G655, G657,
MM (multimode); G651.1 (50/125, 62.5/125, 10Gb/s 50/125) |
5. Order Information:
| Fiber Optic Patch Cord |
| Connector Type | Ceramic Ferrule
End Face | Cable Diameter (mm) | Simplex/Duplex | Single mode
/Multi-mode | Length (meter) |
| FC | PC/UPC/APC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
| SC | PC/UPC/APC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
| ST | PC/UPC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
| LC | PC/UPC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
| MU | PC/UPC | Φ0.9, Φ2 | Simplex/Duplex | SM/MM | Customized |
| MTRJ | PC/UPC | Φ0.9, Φ2 | Duplex | SM/MM | Customized |
Product Picture:
Product Tags:
|
|

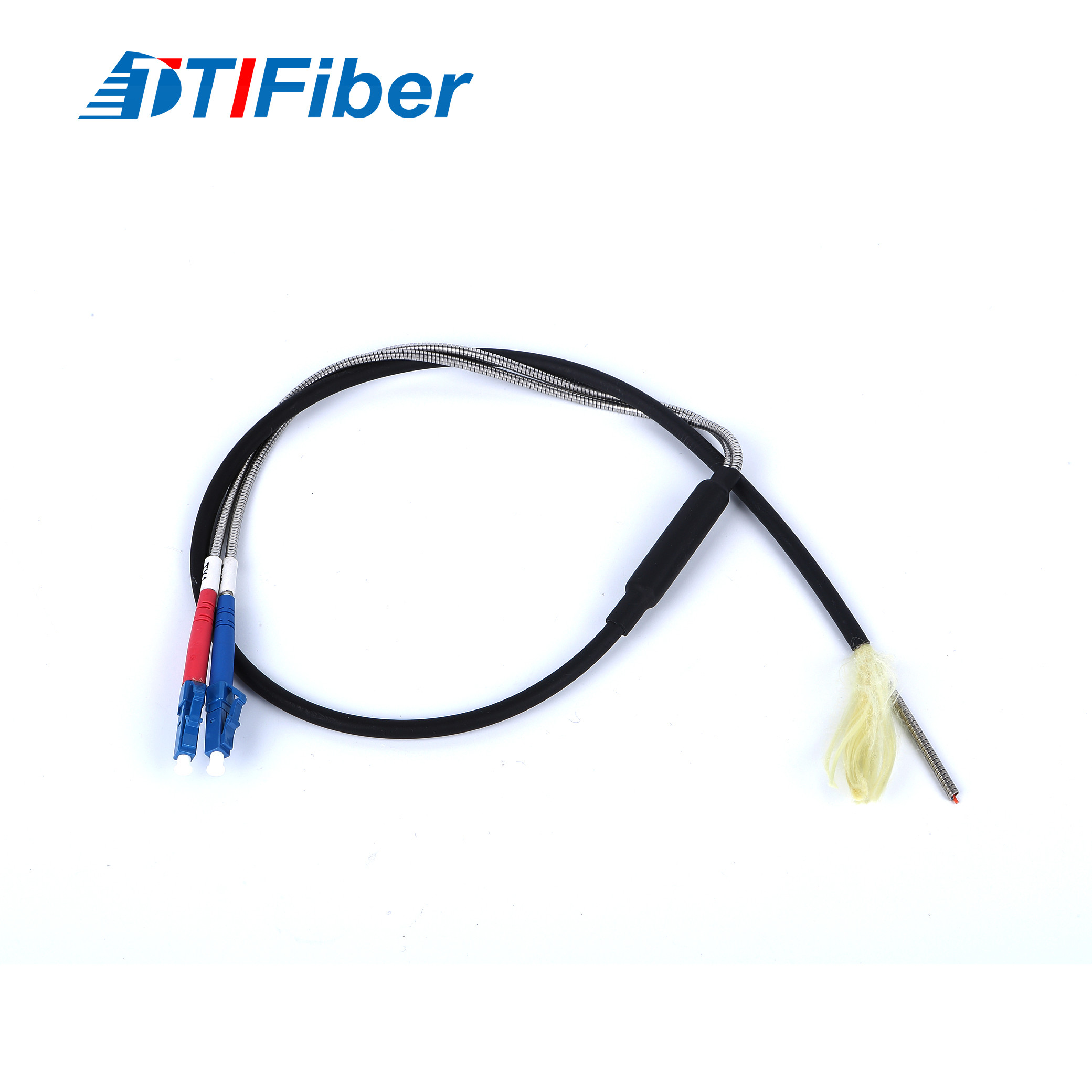

LC Anti Bite Fiber Optical Pigtail with steel Armored Low insertion loss and high return loss Images
|
